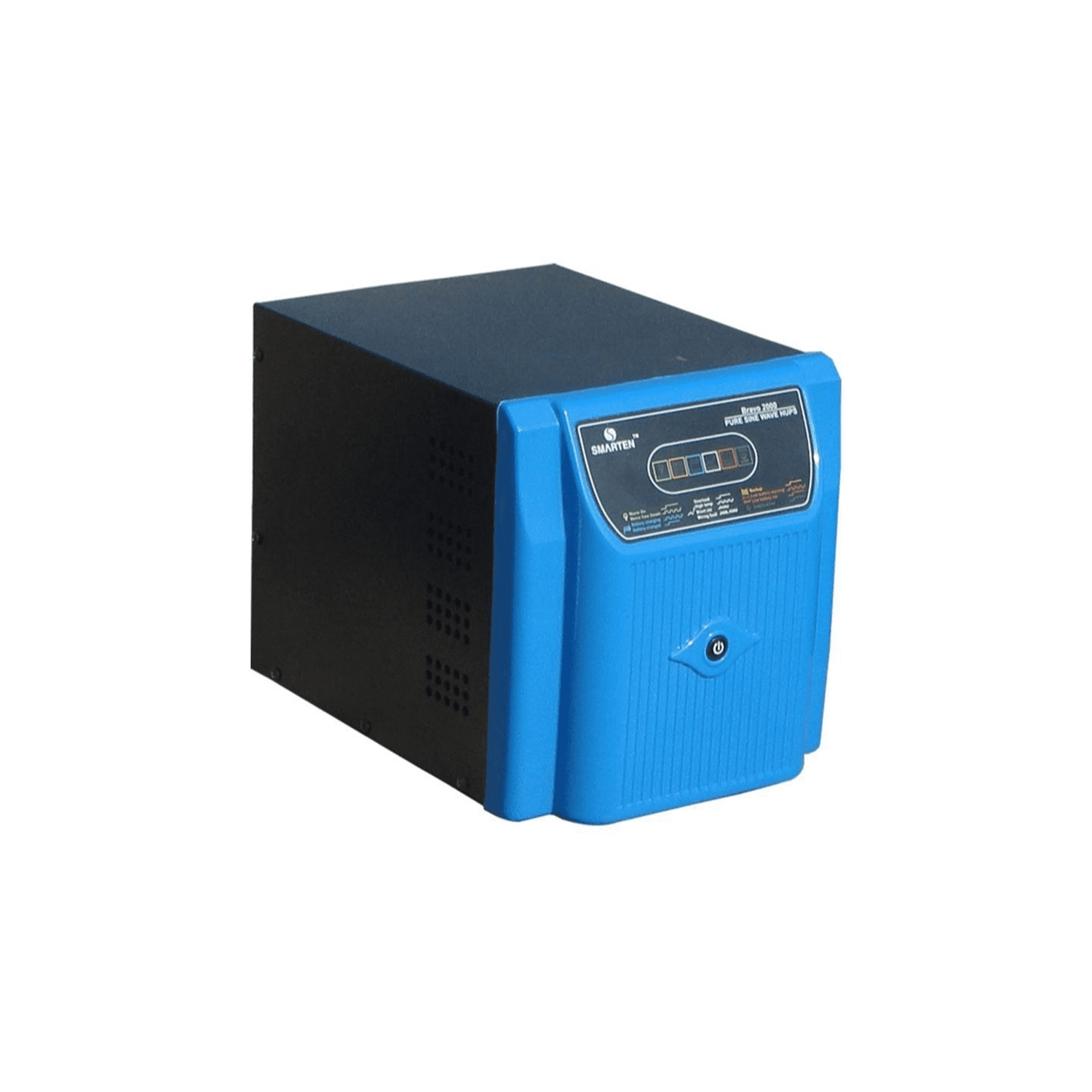

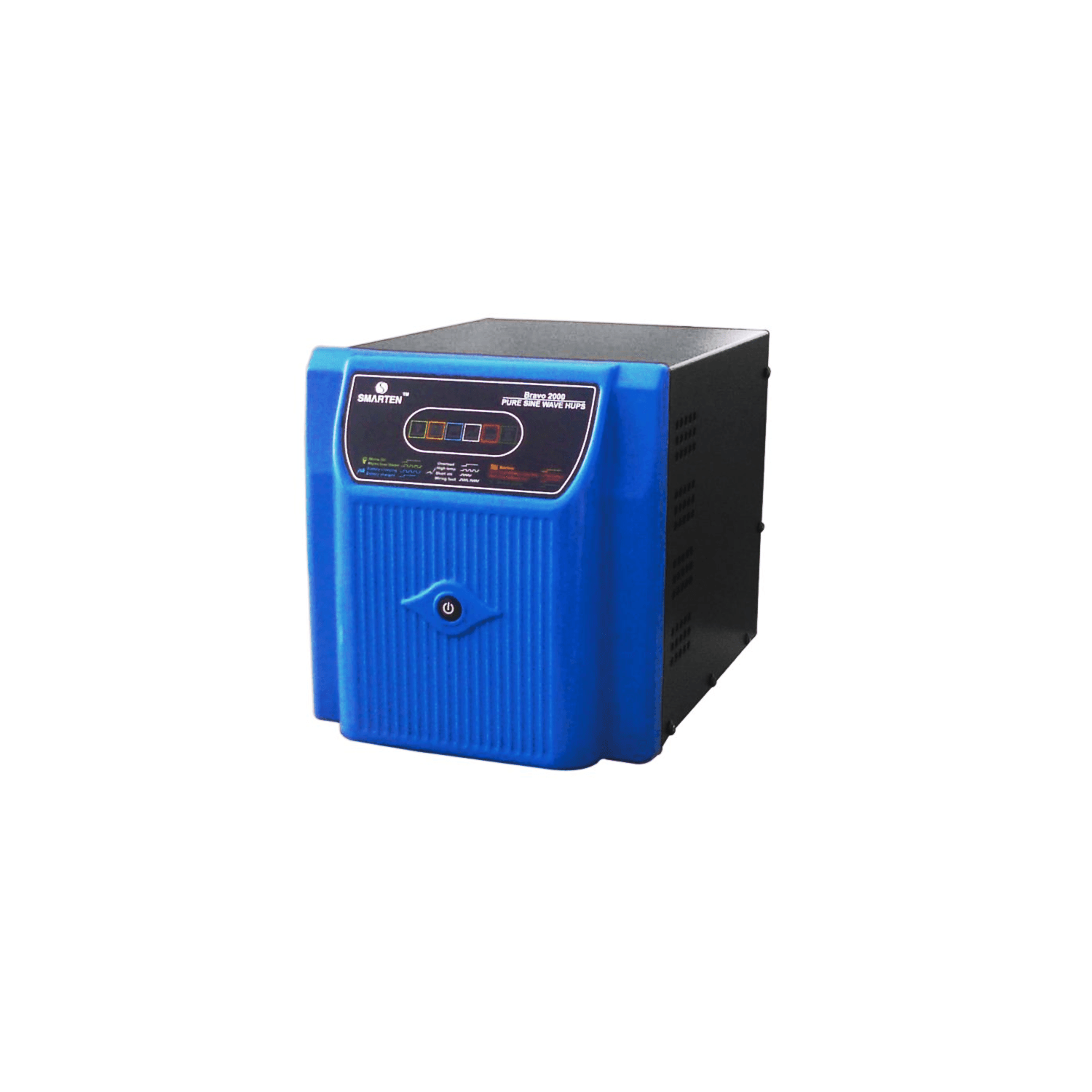

Smarten 2KVA UPS Bravo
The technically advanced BRAVO Home UPS operates on mains and supplies power while charging the battery when Mains supply is available. In case of a power outage, Bravo transfers the entire load to its optimally charged battery and supplies high quality AC power. Apart from the highest quality components and engineering, what makes Bravo special is the inbuilt stabilizer and charger. With Bravo there is no need to purchase an additional voltage stabilizer, or a charger for charge recovery in case the battery is exhausted. This is why it is becoming the most popular sine-wave UPS in the market.
Product Description
- Pure Sine Wave output supply.
- Advanced DSP control technology.
- Smart charging up to 90V mains input voltage.
- Changeover time is less than 10 milliseconds.
- Graphical display for easy user interface.
- Inbuilt independent battery charger to recover any deep discharged battery.
- Allows user to bypass mains supply without connecting batteries.
- Compatible with all type of batteries (LA/TUB/SMF).
- Comprehensive protection against short-circuit, reverse connections, overload, battery over-charge & deep-discharge, over temperature etc.
- Smart UPS/WUPS switch selection.
- Upgradable to Solar PCU
Product Specifications
| Back feed | System will shutdown in case of back feed and there is no retry |
| Battery deep discharge recovery | Yes (Independent Charger to Recover Deep Discharge Battery) |
| Buzzer | Audible beep for Overload\, Short Circuit\, Back feed\, Low Battery\, Over Temperature\, Mains Fuse blown / MCB Trip |
| Charging Current 100 Ah-135 Ah Settings | 12A/15A ± 2A |
| D C Input Voltage | 24V |
| Height (mm) | 260 |
| Input Frequency Range | 48Hz to 52Hz |
| L E D Status Display | Mains ON\, Input Voltage\, Input Frequency\, Battery Voltage\, Battery Charging\, Battery Charged\, Charging Current\, Backup Mode\, UPS ON\, UPS OFF\, Battery Voltage\, Load %\, Output Voltage\, Output Frequency\, Mains Low Cut\, Mains High Cut\, Mains Not Available\, Mains Frequency Cut |
| Length (mm) | 340 |
| Mains A C low-hgh cut W U P S mode | 90VAC - 295VAC ± 10VAC |
| Mains A C low-high cut U P S mode | 175VAC-265VAC ± 10V |
| Mains A C low-high recovery cut U P S mode | 185VAC- 255 VAC ± 10VAC |
| Mains A C low-high recovery cut W U P S mode | 110VAC - 285VAC ± 10VAC |
| Model Name | 2000 VA |
| Output Frequency | 50Hz ± 0.2Hz |
| Output Voltage/ Frequency | 220VAC + 5% -10% (until battery low alarm) |
| Output Wattage | 1600 Watt |
| Over temperature | Yes provided\, if heat sink temperature goes above 100°C System will shut down |
| Overload in backup mode | Yes provided system will give indications at 101% load |
| Reverse Battery | DC Fuse will blown |
| Short Circuit in backup mode | System will shut down after 3-retries in case of output short circuit |
| Short Circuit in Mains Mode | Mains Fuse will blown |
| Width (mm) | 230 |
