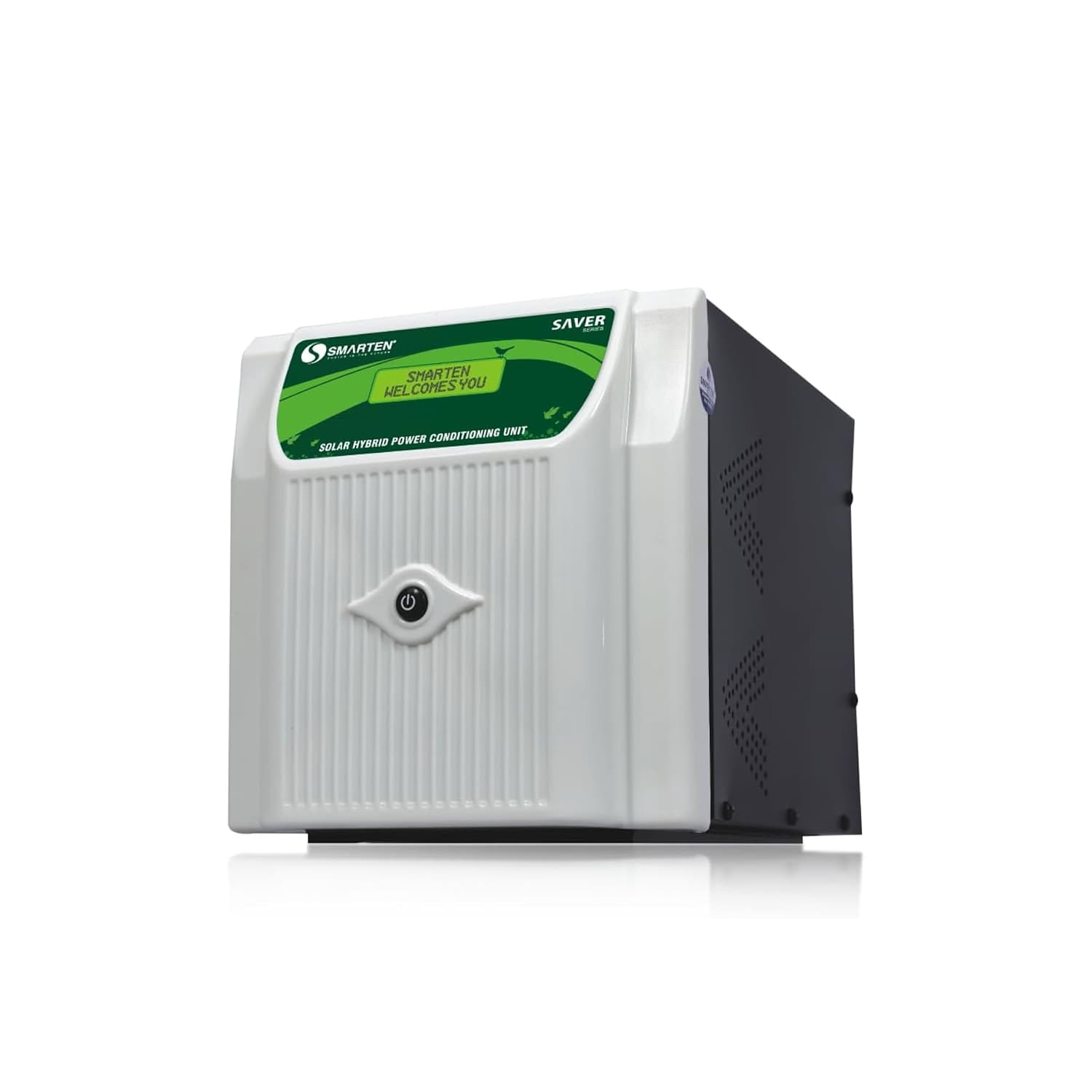

Smarten 1700VA Solar Hybrid PCU- Saver
The premium technically advanced PCU with world class technology combines the functions of a solar inverter and UPS. With this one doesn’t need to maintain separate power back up system for powering home equipment. Powered by Smarten’s high quality solar panels, the SAVER Solar PCU provides a power saving of 30%, and charges at even low voltages like 90V. With a 10ms changeover time, triple protection and an 88% system efficiency, SAVER helps you to enjoy continuous power even during extended power cuts, and makes you less dependent on the power grid.
Product Description
- Inbuilt strong and advanced PWM based Solar Charge Controller.
- 100% solar priority and smart sharing property with solar & grid.
- Wide Input PV range in all models.
- Pure sine wave output supply.
- Advanced DSP Control Technology.
- Graphical display for easy user interface.
- Compatible with all type of solar panels.
- Smart battery charging up to 90V mains input voltage.
- Inbuilt independent battery charger to recover deep discharged battery.
- Allows user to bypass the mains supply without connecting batteries.
- Compatible with all type of batteries (LA/TUB/SMF).
- Changeover time less than 10 milliseconds.
- Smart UPS/WUPS switch selection.
- Comprehensive protections against short-circuit, overload, wiring fault, high input voltage, reverse connections, over temperature etc.
- Reverse PV & High PV protected.
Product Specifications
| Battery Type | SMF / Tubular / Flooded LEAD ACID |
| Brand | Smarten |
| Charging Current | 100 Ah-135 Ah : 12A/15A ± 2 Amp, 150 Ah- 220 Ah: 15A/20A ± 2 Amp |
| D C Volt | 24 |
| Height (mm) | 310 |
| Length (mm) | 350 |
| Model | Saver |
| Mounting Type | Table Top |
| No. of Battery | 2 |
| Output Voltage | 220 VAC +5% - 10% (until battery low alarm) / 50 Hz ± 0.2 Hz |
| Power Factor | 0.8 |
| Rating | 1700 VA |
| Technology | Microcontroller based state-of-the-art technology Using MOSFETs. |
| Waveform | Pure Sinewave |
| Width (mm) | 230 |
