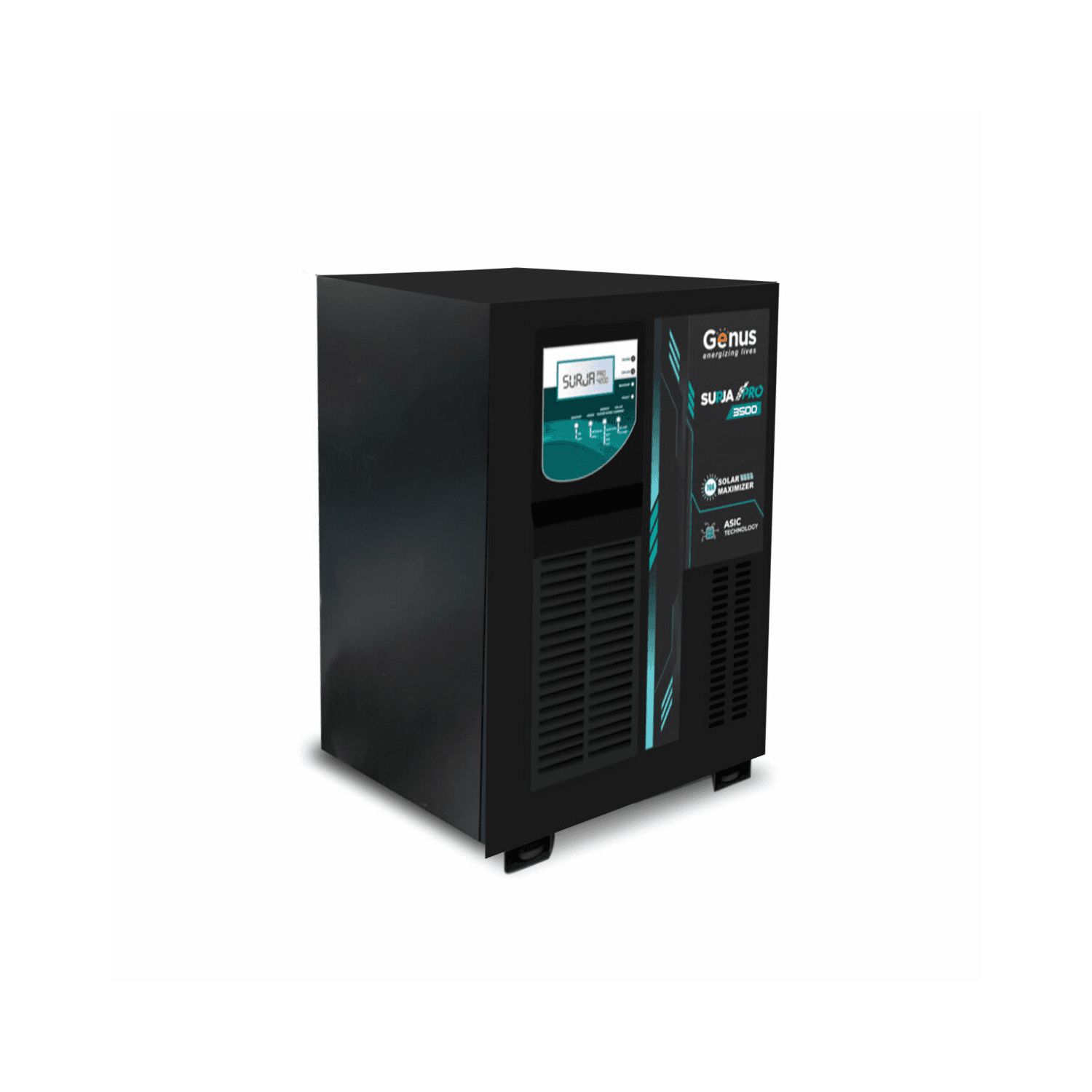

Genus 3.5KVA Solar Hybrid PCU- Surja Pro
Re-imagined Pure Sine Wave Solar Home Inverter UPS First in Segment Solar Maximizer minimizes Electricity Bill Dual LCD & LED Multi Information Display Safe for Sensitive Equipment: Pure Sinewave Power 3 in 1 Operation: Operates on Solar + Grid or Only Solar or Only Grid
Product Description
Product Specifications
| Brand | Genus |
| Change Over Time In Normal Mode | <50 milliseconds |
| Change Over Time In U P S Mode | <12 milliseconds |
| Charger Efficiency | Upto 92% |
| Display Type | Dual Display (LCD & LED) |
| Height | 460 mm |
| Length | 315 mm |
| Main Input Voltage Range ( Normal Mode) | 100 VAC – 280 VAC ± 15 VAC |
| Main Input Voltage Range ( U P S Mode) | 180 VAC – 265 VAC ± 5 VAC |
| Max Solar D C Input Voltage ( Voc ) | 100 V |
| Max. Grid Charging Current to Battery | 15 A |
| Max. Solar Charging Current to Battery | 60 A |
| Max. Solar Current | 60 A |
| Maximum Solar Array | 3500 W |
| Model | Surja Pro |
| Nominal Input Battery Voltage | 192 V |
| Parameters | Solar ON/OFF, Switch On/Off, Main On/Off, Main Fuse Blown / MCB Trip, Load Level Graph, PV Current & Voltage, Warnings & Protections, System Capacity, Energy Saver Mode On/Off, UPS/Normal Mode Status |
| Power Factor | 0.8 |
| Rating | 3.5KVA- 2800Watt |
| Solar Charge Controller Type | PWM |
| Solar Charger Rating | 60 A |
| Solar Input Voltage range ( Vmpp ) | 60V – 84V |
| Waveform | Pure Sinewave |
| Width | 290 mm |
