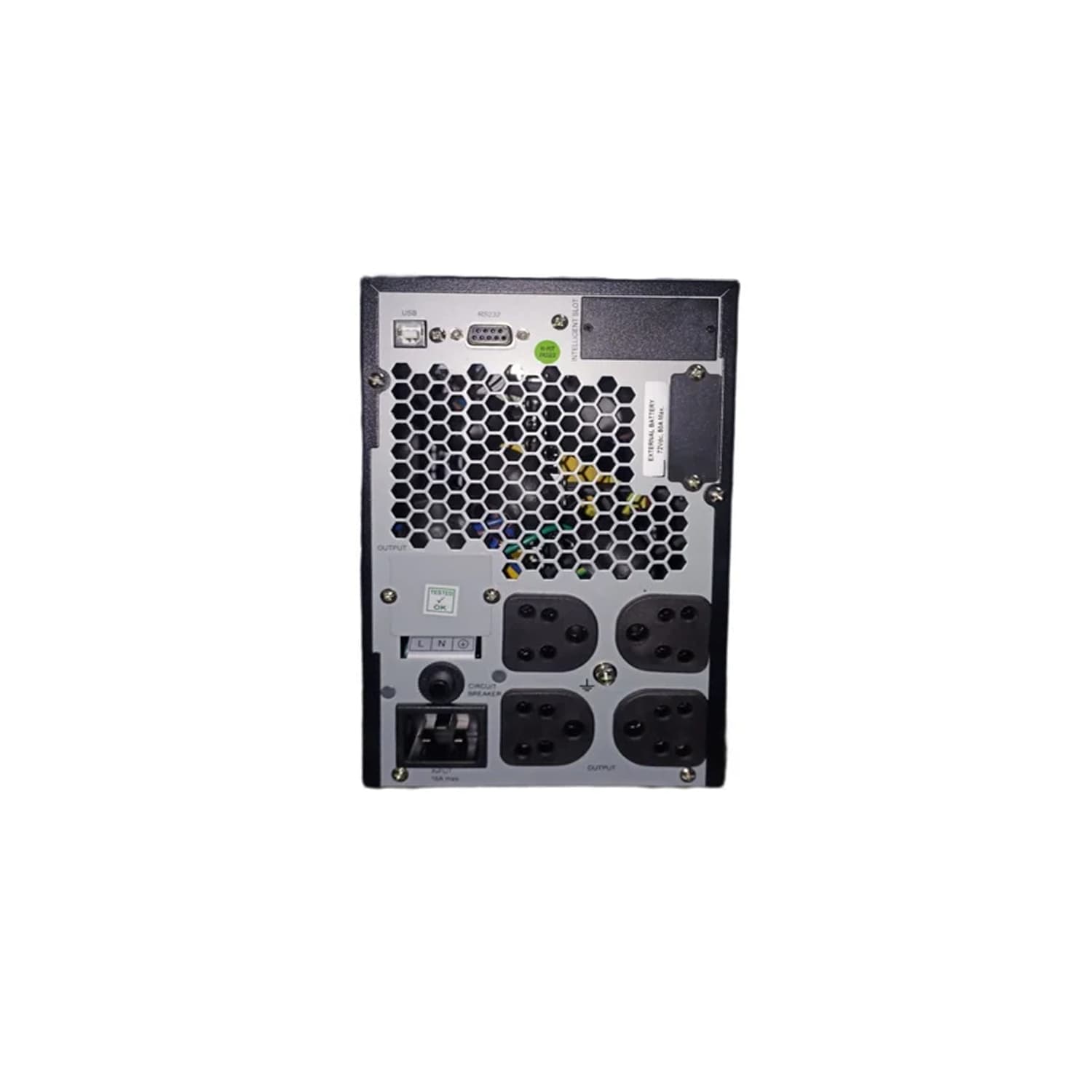

Fuji Electric 3 KVA Online UPS
Finch PW ensures that equipment functions without power interruptions when power quality is questionable and outages are frequent. Finch PW adjusts to charging current from 1A to 6A depending on the requirement and with an additional charger, Finch PW can support longer backup times. It is ideal for ATMs, banking, and other business-critical applications where long backup periods are essential.
Product Description
Features and Benefits
- Online double conversion UPS.
- Input power factor corrector 0.99 (PFC)
- Automatic bypass, allow to transfer the load to the mains in case of overload or internal fault
- Inbuilt Isolation Transformer (optional) provides a galvanic isolation between the mains and the loads
- Hot standby Configuration to ensure the availability of Quality power to mission critical applications
- Battery cold start feature allows UPS to be powered on from the battery without utility
Product Specifications
| Additional Charger | 10A |
| Battery Numbers | 6 or 8 |
| Capacity | 3 KVA (2.4 KW) |
| Charging Current ( Max) | 1A/2A/4A/6A (Adjustable) |
| Configuration | Single Phase with Ground |
| Current Crest Ratio | 03:01 |
| Efficiency ( A C Mode) | 90% |
| General | Finch PW |
| Height (mm) | 240 |
| Humidity | 20-90 % RH @ 0-40°C (Non-Condensing) |
| Indicators | LCD ( Load Level\, Battery Level\, AC Mode\, Battery Mode\, Bypass Mode and Fault Indicators) |
| Input Frequency Range | 40 Hz ~70 Hz |
| Input Power Factor | ≥ 0.99 @ Nominal Voltage (100% load) |
| Input Voltage Range | 110-300V AC (at 50% Load) or 160-280V AC (at 100% Load) |
| Length (mm) | 145 |
| Noise Level | Less than 58dB & 1 Meter |
| Nominal Input Voltage | 200/208/220/230/240VAC |
| Output Frequency Range ( Battery Mode) | 50 Hz +/- 0.25 Hz |
| Output Frequency Range ( Synchronized Range) | 47~53 Hz |
| Output Voltage | 200/208/220/230/240VAC |
| Output Voltage Regulation | '+/-7% |
| Overload | 105%- 100%: 10 Mins 110%-130%: 1 Min 130%> : 3 Sec |
| Waveform ( Battery Mode) | Pure Sinewave |
| Width (mm) | 400 |
