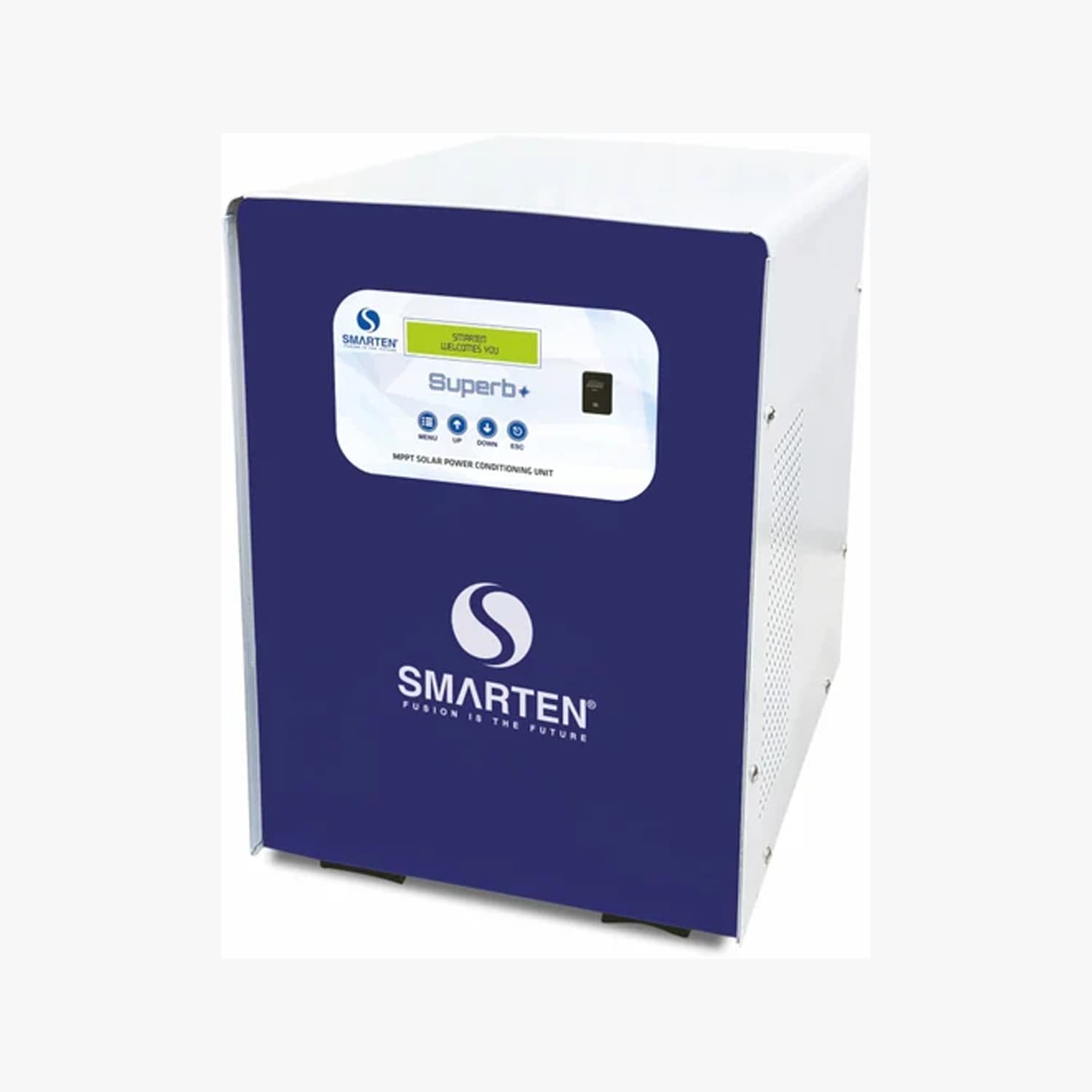

Smarten 3200VA MPPT Solar PCU
Made with high grade quality, technically advanced Superb Solar PCU is an innovative solar inverter that gives you the joy of uninterrupted power supply. It’s is packed with exciting features like LCD Screen, Advanced DSP Controller and more. The Superb PCU is 30% more efficient than usual PCUs. It comes with 4 levels of battery’s depth of discharge options for your different power requirements. With low voltages charging, 10 ms changeover time and triple protection, it completely cancels the need to maintain separate power back up system for powering equipment.
Product Description
- Supports two battery.
- Advanced DSP control technology.
- 30 % more efficient MPPT Solar Charge Controller.
- Operating Input AC Voltage 90-290V.
- Smart charging even during low voltage 90V.
- DOD, can set four battery discharge levels. (20%, 30%, 40%, 50%)
- Grid charging enable/disable option for reduced electricity bill.
- Preference to Solar Power over Grid Power.
- Supports a wide battery range, i.e. Flat Plate, Tubular & VRLA (SMF)
- Recover deep discharge battery even Zero volt zero gravity.
- SUPERB HKVA PCU can run heavy loads like AC, Geyser, Petrol Pumps, Photocopiers, Dental Chairs etc., depending on their capacity (please check the inverter capacity and your power requirement)
- Sine wave output for safety of your sensitive appliances and noiseless operations.
- Complete protection from back feed and phase to phase supply.
- MCB for protection from Input mains, solar & Battery.
- Comprehensive protection against short-circuit, reverse polarity, battery over-charge, deep-discharge etc
- Big LCD Display to easily understand status of mains availability, battery status, solar status etc.
- Bypass switch for supplying output directly from grid in case of PCU fault.
- UPS & WUPS mode for IT load.
Product Specifications
| Battery Type | SMF / Tubular / Flooded LEAD ACID |
| Brand | Smarten |
| Charging Current | 100 Ah-135 Ah : 12A/15A ± 2 Amp, 150 Ah- 220 Ah: 15A/20A ± 2 Amp |
| D C Volt | 48V |
| Height (mm) | 310 |
| Length (mm) | 350 |
| Model | Superb |
| Mounting Type | Table Top |
| No. of Battery | 4 |
| Output Voltage | 220 VAC +5% - 10% (until battery low alarm) / 50 Hz ± 0.2 Hz |
| Power Factor | 0.8 |
| Rating | 4000 VA |
| Technology | Microcontroller based state-of-the-art technology Using MOSFETs. |
| Waveform | Pure Sinewave |
| Width (mm) | 230 |
