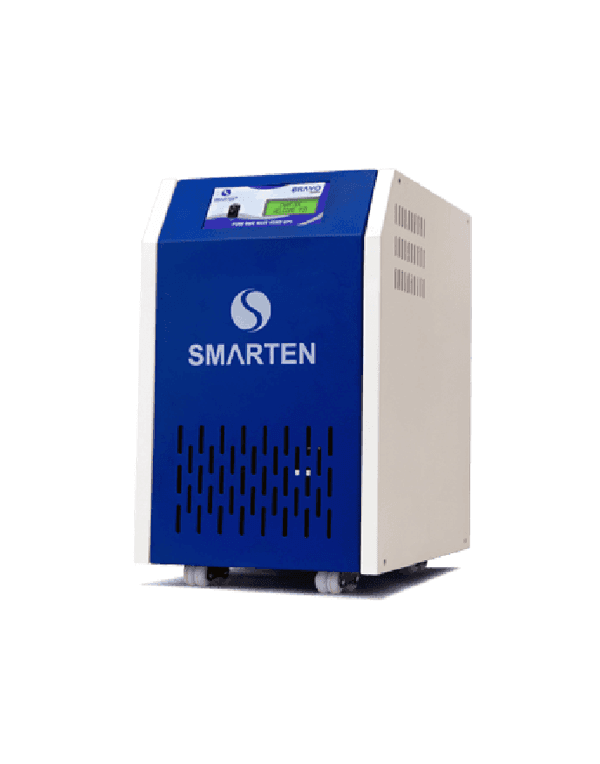

Smarten 10 KVA UPS Bravo
The technically advanced BRAVO Home UPS operates on mains and supplies power while charging the battery when Mains supply is available. In case of a power outage, Bravo transfers the entire load to its optimally charged battery and supplies high quality AC power. Apart from the highest quality components and engineering, what makes Bravo special is the inbuilt stabilizer and charger. With Bravo there is no need to purchase an additional voltage stabilizer, or a charger for charge recovery in case the battery is exhausted. This is why it is becoming the most popular sine-wave UPS in the market.
Product Description
- Pure Sine Wave output supply.
- Advanced DSP control technology.
- Smart charging up to 90V mains input voltage.
- Changeover time is less than 10 milliseconds.
- Graphical display for easy user interface.
- Inbuilt independent battery charger to recover any deep discharged battery.
- Allows user to bypass mains supply without connecting batteries.
- Compatible with all type of batteries (LA/TUB/SMF).
- Comprehensive protection against short-circuit, reverse connections, overload, battery over-charge & deep-discharge, over temperature etc.
- Smart UPS/WUPS switch selection.
- Upgradable to Solar PCU
Product Specifications
| Battery Type | SMF / Tubular / Flooded LEAD ACID |
| Brand | Smarten |
| Charging Current | 100 Ah-135 Ah : 12A/15A ± 2 Amp 150 Ah- 220 Ah: 15A/20A ± 2 Amp |
| D C Volt | 12 |
| Dimensions (in mm) | 270*190*125 (w/d/h) |
| Height (mm) | 650 |
| Length (mm) | 550 |
| Model | Bravo |
| Mounting Type | Table Top |
| No. of Battery | 1 |
| Output Voltage | 220 VAC +5% - 10% (until battery low alarm) |
| Power Factor | 0.8 |
| Rating | 900 VA |
| Technology | Microcontroller based state-of-the-art technology Using MOSFETs. |
| Waveform | Pure Sinewave |
| Weight | 9.35 kg |
| Width (mm) | 410 |
