Amaron Quanta

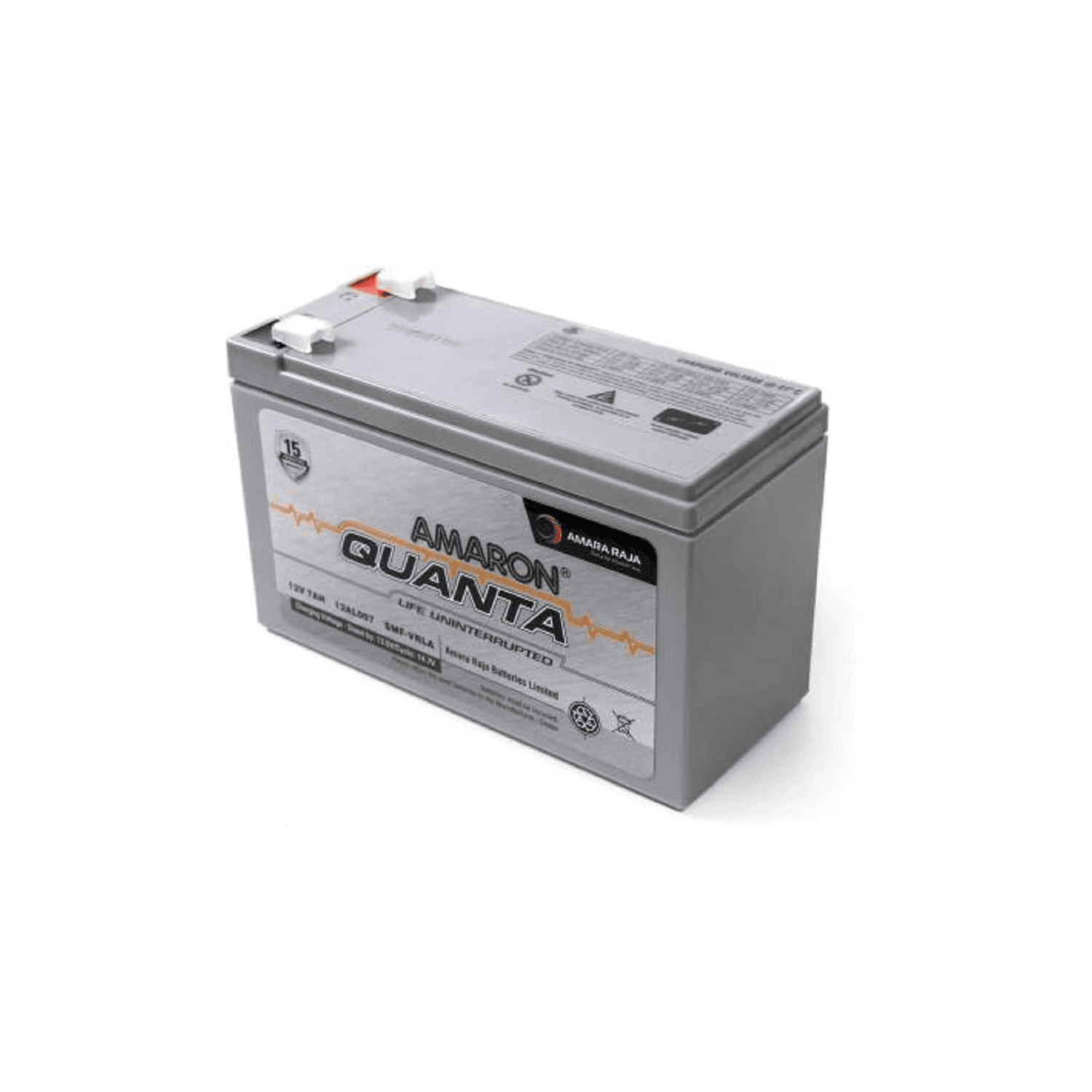

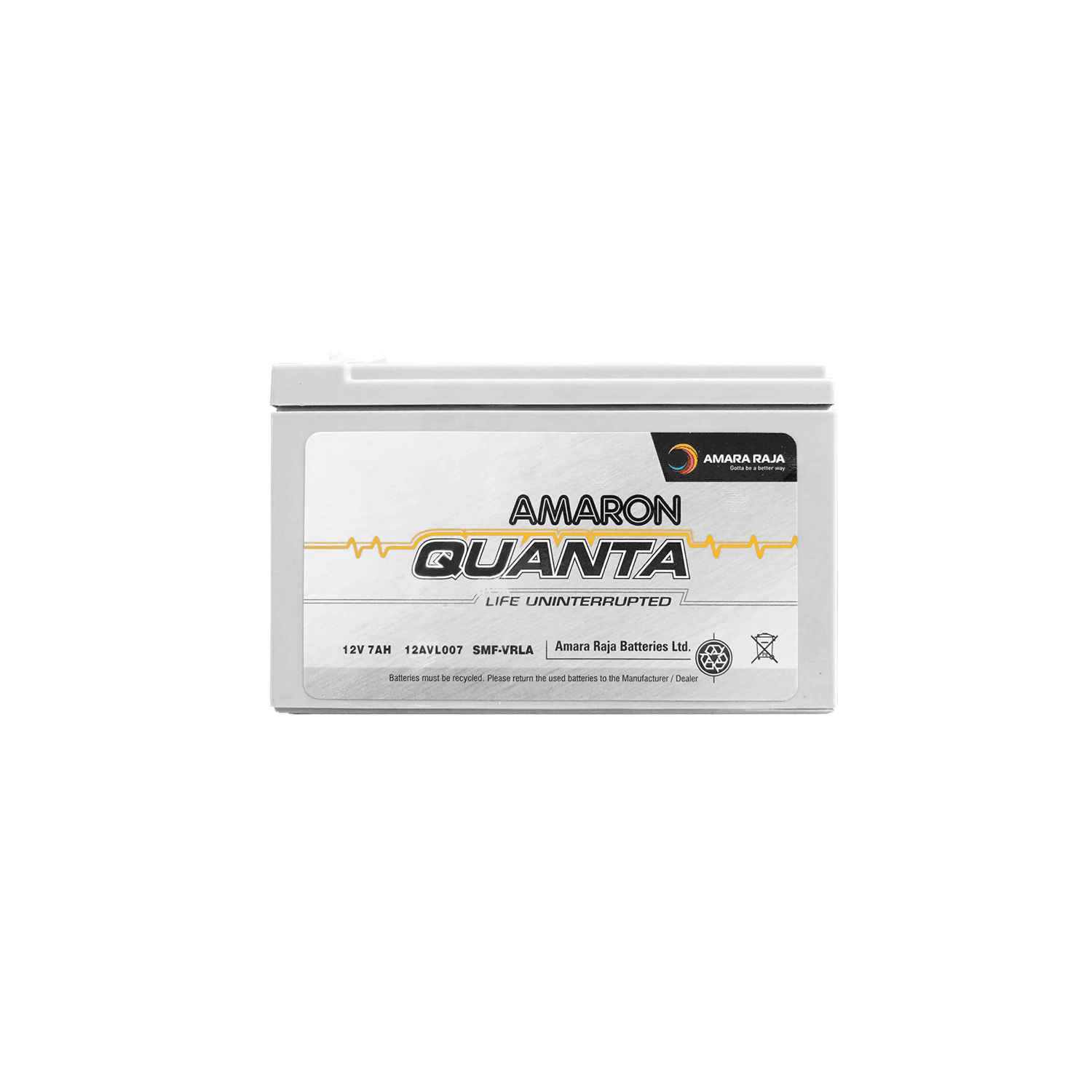

Amaron Quanta 7 Ah VRLA Battery
NPR 2,200NPR 2,50012% off
Amaron Quanta Small VRLA is a general-purpose battery designed with updated and advanced AGM Valve Regulated technology and high purity raw material, the battery maintains high consistency for better performance and reliable standby service life. These batteries are available in a complete range from 7Ah to 18Ah. These small VRLA batteries cover a broad range of applications including Desktop/ UPS, agricultural tools, medical equipment, emergency lighting, electric wheelchairs, alarm and security system applications.
Product Description
- Proven AGM technology with non-spillable sealed construction which supports hassle-free operation
- Superior high rate discharge performance with low internal resistance
- High integrity inter-cell weld between cells provides better reliability, low resistance current path
- Advanced Absorbent Glass Mat (AGM) separator for superior oxygen recombination efficiency
- Low self-discharge rates for extended storage periods
- Compact design ensures easy handling and no installation constraints
- High quality, ready to use, and eco-friendly battery with maintenance-free characteristics
Product Specifications
| Case Material | Acrylonitrile Butadiene Styrene (ABS) |
| Height(±2mm) | 100 mm (3.94 in.) |
| Internal Resistance ( I R) | Approx. 25 mΩ for a fully charged battery (27°C) |
| Length (±2mm) | 151 mm (5.94 in.) |
| Max. discharge current (5 sec) | 105 A |
| Nominal Operating Temp. range | 27°C ± 3°C |
| Nominal Voltage | 12V |
| Operating Temp. range | -20°C to +60°C (50 to 60°C for shorter duration) |
| Rated Capacity | 7Ah / C20Hr / 1.75VPC / 27°C |
| Self- Discharge | < 4% per month at 27°C |
| Terminal Type | F1/F2 (Faston tab) |
| Weight (±5%) | 2.2 Kg (4.85 lbs) |
| Width(±2mm) | 65 mm (2.56 in.) |
